SpeTool Heavy-Duty Aluminium Base Portable Drill Guide – 0.05mm Precision, Precision and Adjustable 0–60° Multi-Angle Drilling,
Regular price$323.99
Tax included.
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Adjustable: 0-60° with Lock Every 7.5°
Application: Wood Working Tool
Brand Name: NONE
DIY Supplies: Woodworking
Guide Poles: Stable Triple Guide Poles with V-Block Base
High-concerned chemical: None
Included Components: 2 templates for customizing, 3 insert rings, router lift
Material: aluminum,Aluminium
Model Number: US EU SP-GD-A
Origin:
Package: BOX
Precision Runout: ≤ 0.05 mm
Type: Drills
is_customized: No
item weight: 3.79 kg
SpeTool Heavy-Duty Aluminum Base Portable Drill Guide – 0.05mm Precision, Precision and Adjustable 0–60° Multi-Angle Drilling,

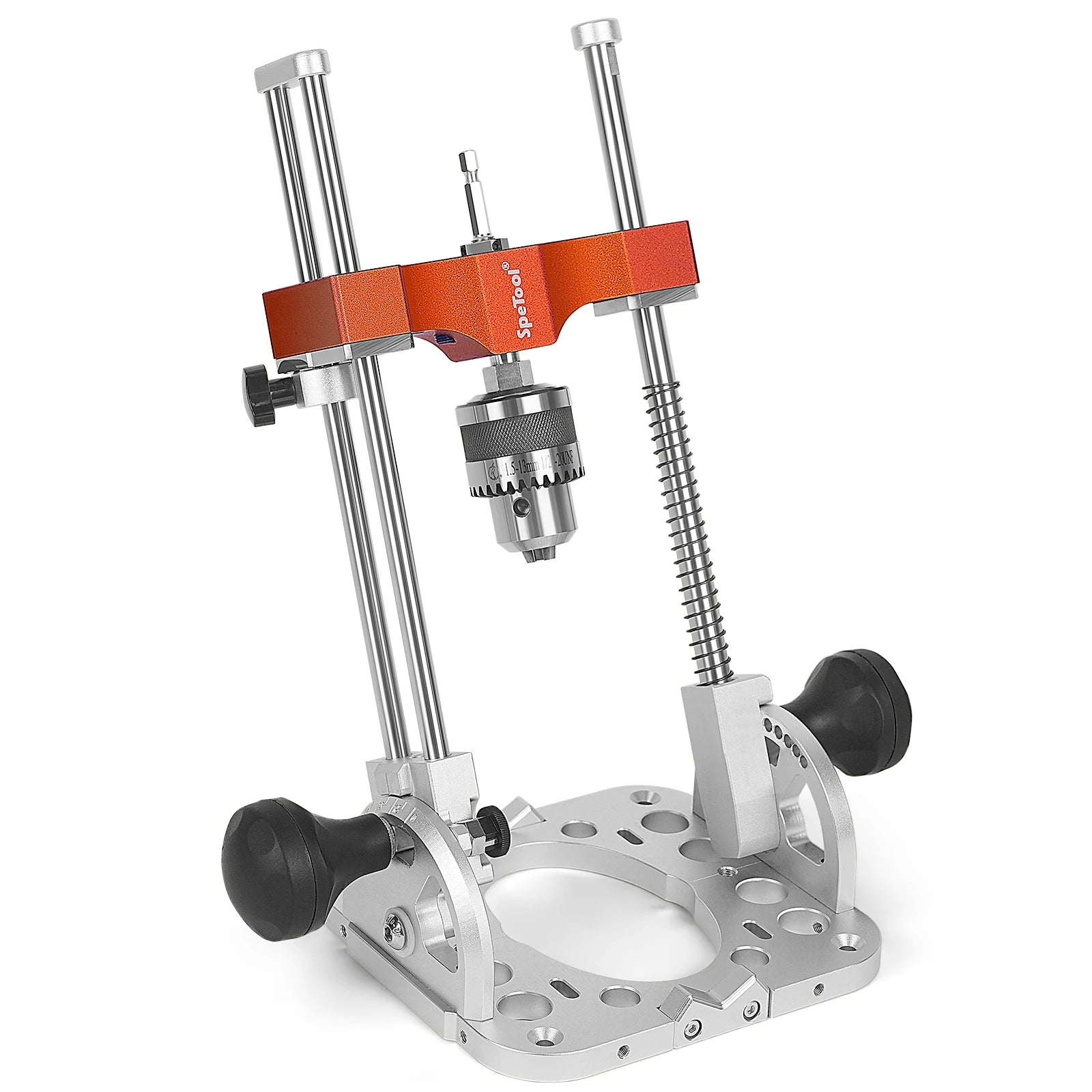

The SpeTool Portable Drill Guide combines the portability of a handheld drill with the precision of a drill press. Built with heavy-duty materials and advanced ball-bearing technology, it delivers accurate, smooth, and stable drilling every time.
✅ Precision Runout ≤ 0.05 mm
✅ Adjustable 0–60° with Lock Every 7.5°
✅ Stable Triple Guide Poles with V-Block BaseKey
Features

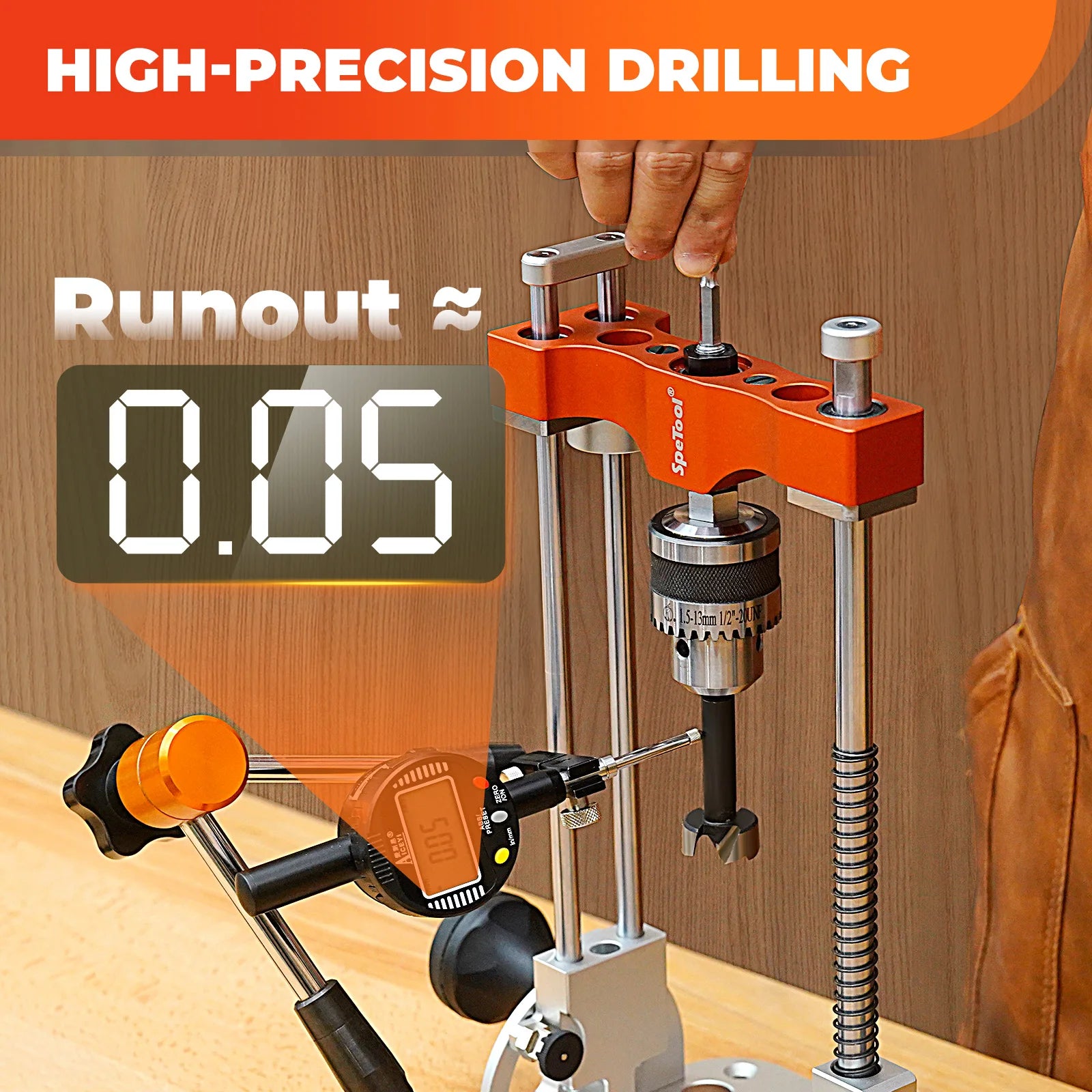

1. Millimeter-Level PrecisionWith a radial runout of ≤0.05 mm, this guide ensures drill holes are as precise as a stationary drill press. Perfect for woodworking projects that demand accuracy.

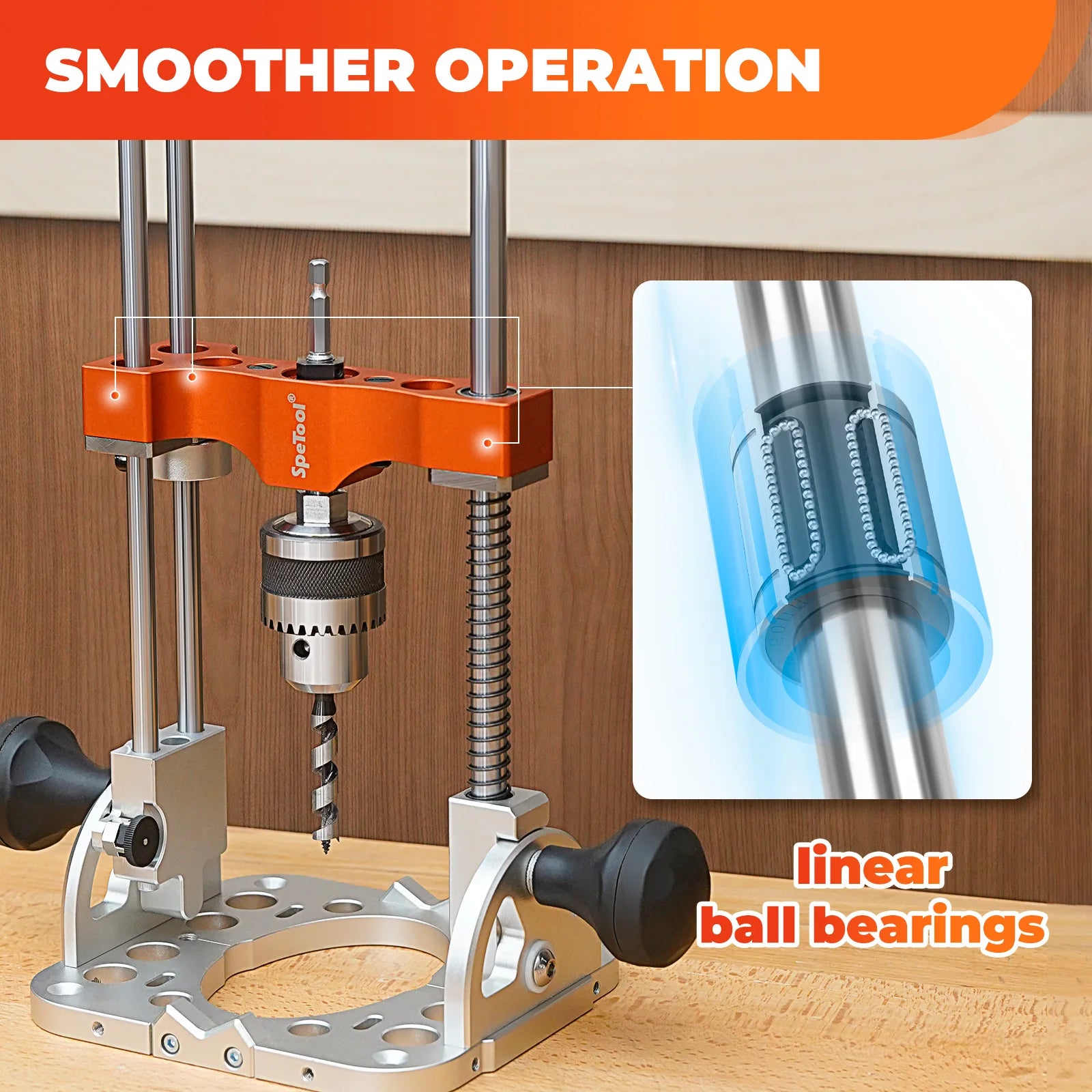

2. Smooth Linear Ball-Bearing MotionEquipped with ball-bearing guide poles, the drill glides with minimal friction. This reduces wear and delivers consistent, smooth drilling—low maintenance, no frequent lubrication required.

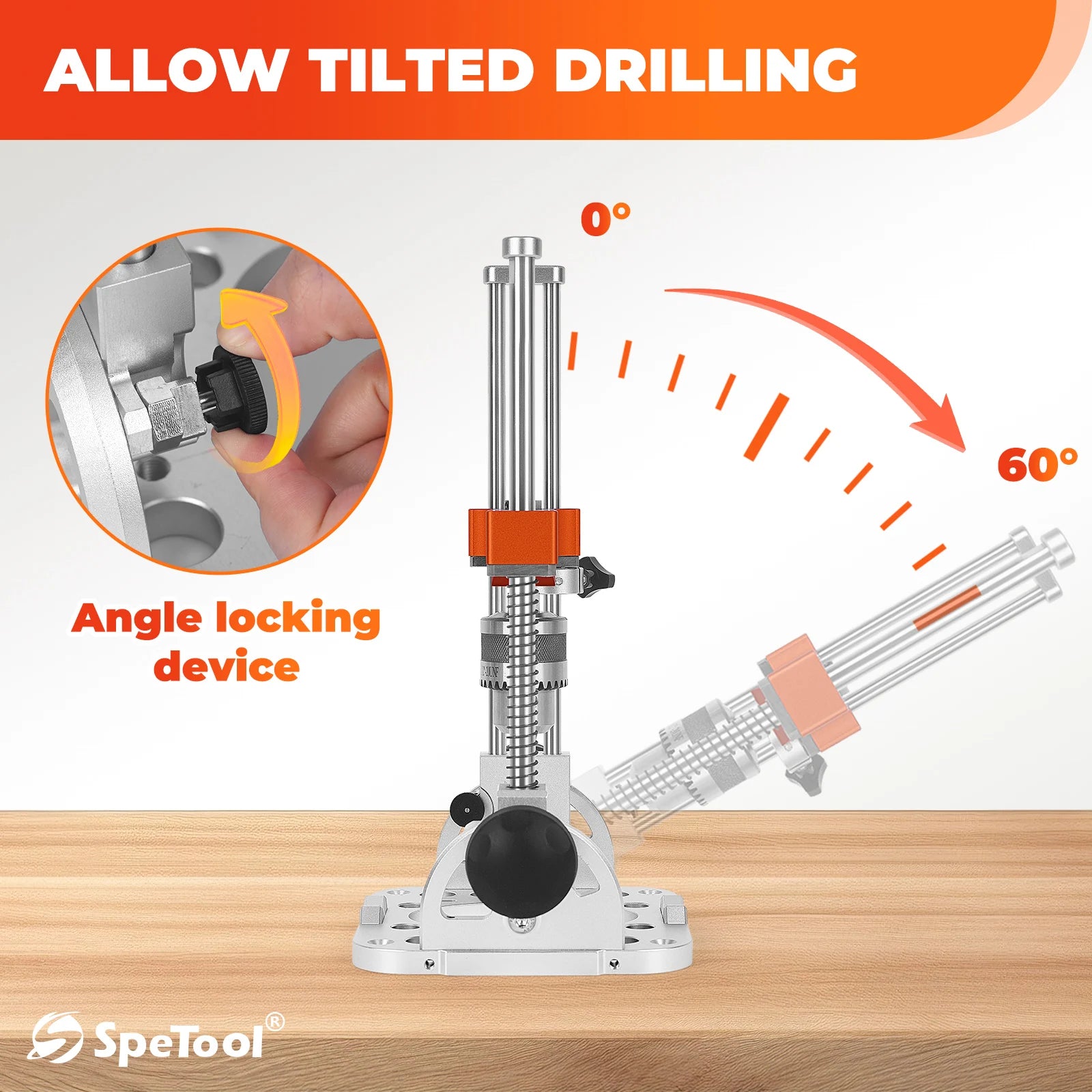

3. Infinite Angle Adjustment (0–60°)Easily adjust drilling angles from 0° to 60°, with double-locking stability every 7.5°. Whether you need straight holes or angled joinery, this guide ensures repeatable accuracy.

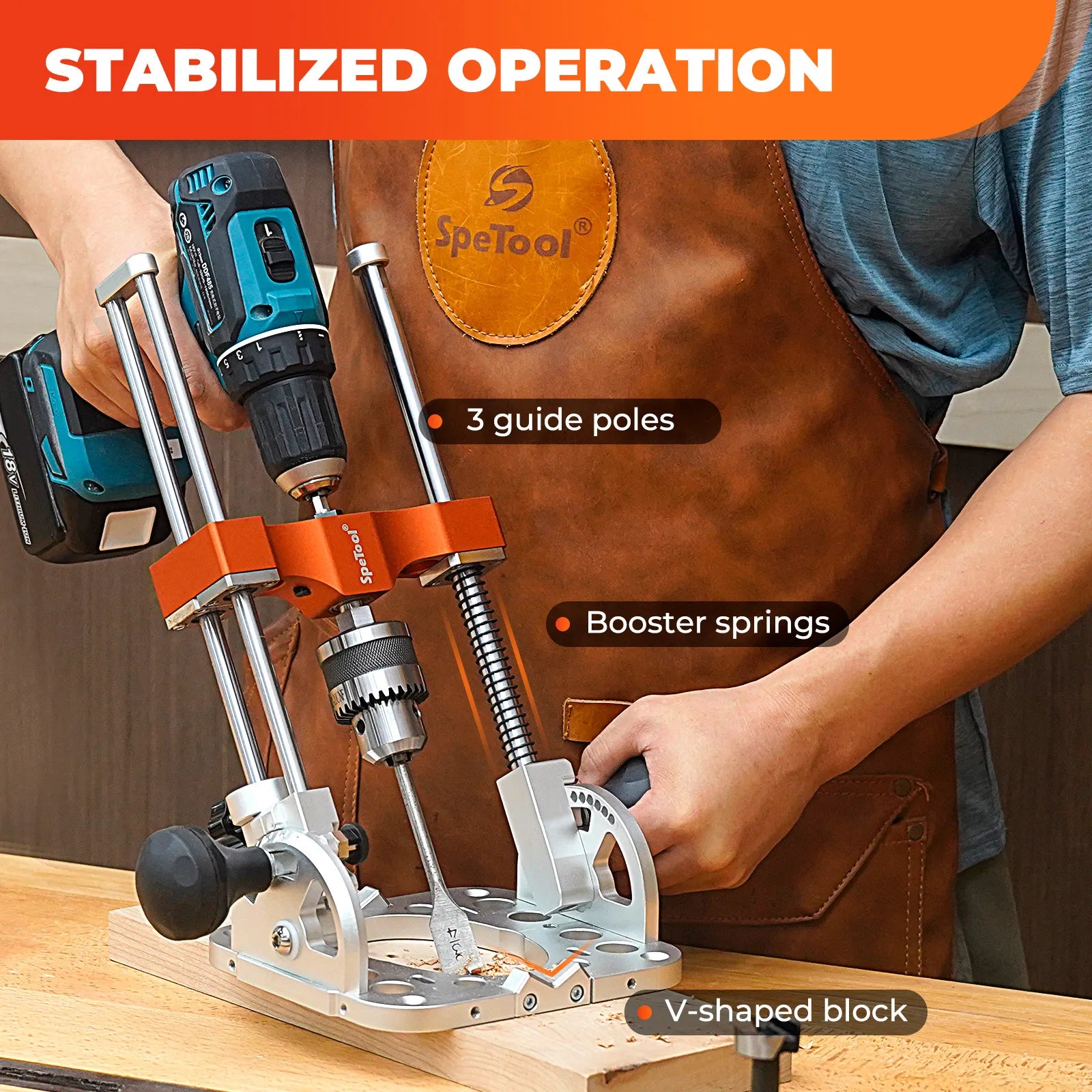

4. Triple Guide Rods & V-Block BaseThree heavy-duty poles prevent wobbling or misalignment, even under the vibration of a power drill. The integrated V-groove secures both flat boards and cylindrical materials, making it versatile for a variety of woodworking tasks.
5. Solid Aluminum BaseMade from hard-anodized aluminum alloy, the 3.8 kg (approx. 8.36 lb) base provides rock-solid stability during vertical and angled drilling. Two removable center pins make centering quick and effortless—no repeated adjustments needed.
Technical Specifications
How to Use
1.Secure the drill guide onto your workpiece.
2.Insert your handheld drill into the 1/2″ chuck.
3.Adjust the drilling angle (0–60°) and lock securely.
4.Drill smoothly with stable guidance.
5.Remove the guide and clean after use.
Usage Notes

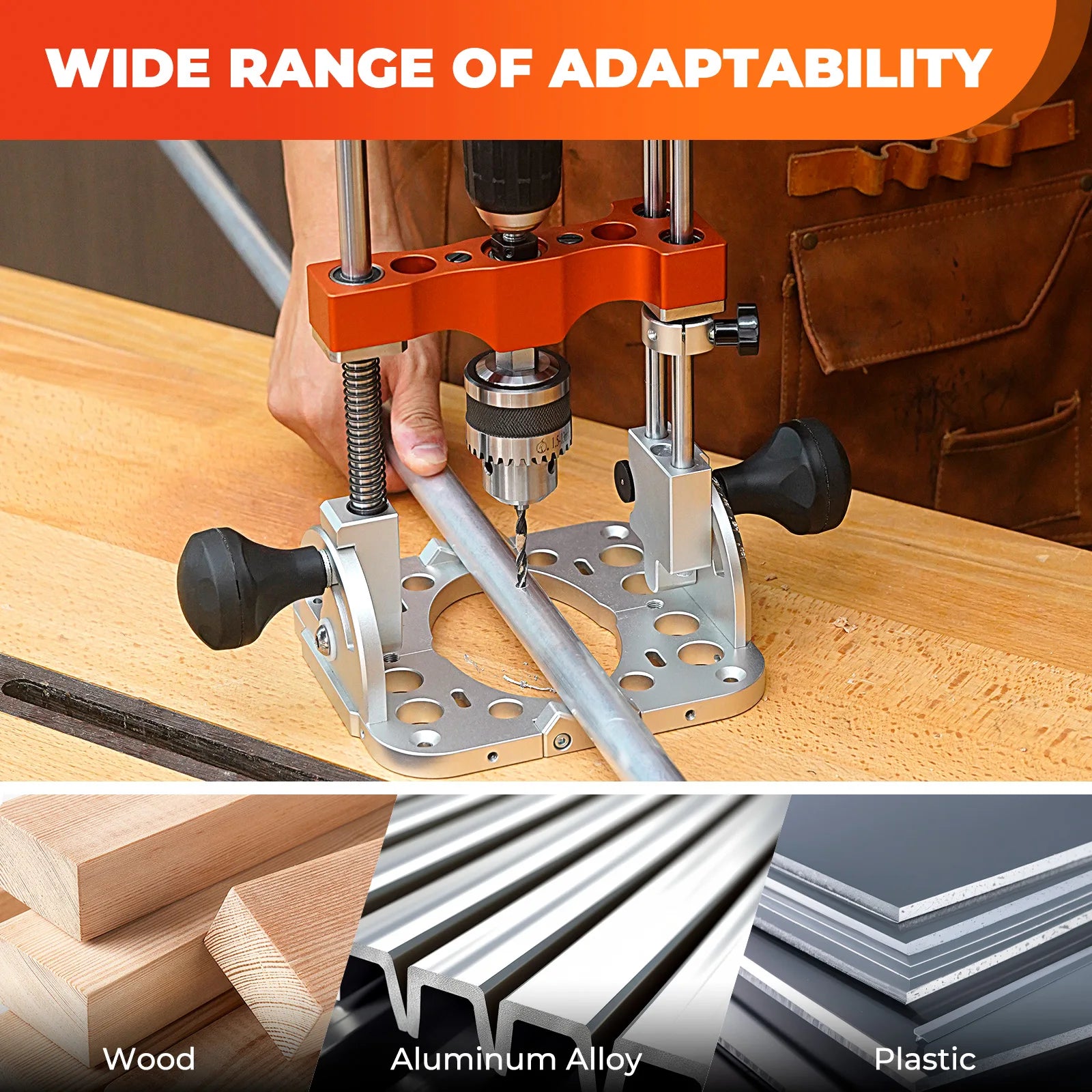

1. Designed primarily for woodworking and plastics.
2. For metals and harder materials, performance depends on drill power, bit type, and feed rate—use with caution.
3. Regular cleaning helps maintain smooth bearing motion.
Why Choose SpeTool?
1. Trusted by 100,000+ woodworking enthusiasts worldwide.
2. Backed by 365-Day Warranty & Free Shipping.
3. Precision tools designed with woodworkers’ real needs in mind.
Bring drill-press precision to your handheld drill.
Order the SpeTool Portable Drill Guide today and drill with confidence!
