SPECIFICATIONS

Brand Name: Bymaocar

High-concerned chemical: None

Motor: Brushed

Origin:

Power Type: Petrol / Gas

Thicker Shield: Its shield is made of high quality PP material, wider and thicker for high durability, which prevents debris from splashing during mowing and is safer.

Heat Dissipation Holes: The enlarged heat dissipation holes and large heat dissipation air blades can ensure that the machine is operating quickly to cool down and keep you stable for a long time.

Clear Fuel Tank: The 0.9Qt clear fuel tank allows you to conveniently monitor the fuel level and quickly lock the switch for easy use and storage

Sponge Air Filter: This mower's sponge filter is fine and can be repeatedly cleaned, long life, can better assist you to use it

Application

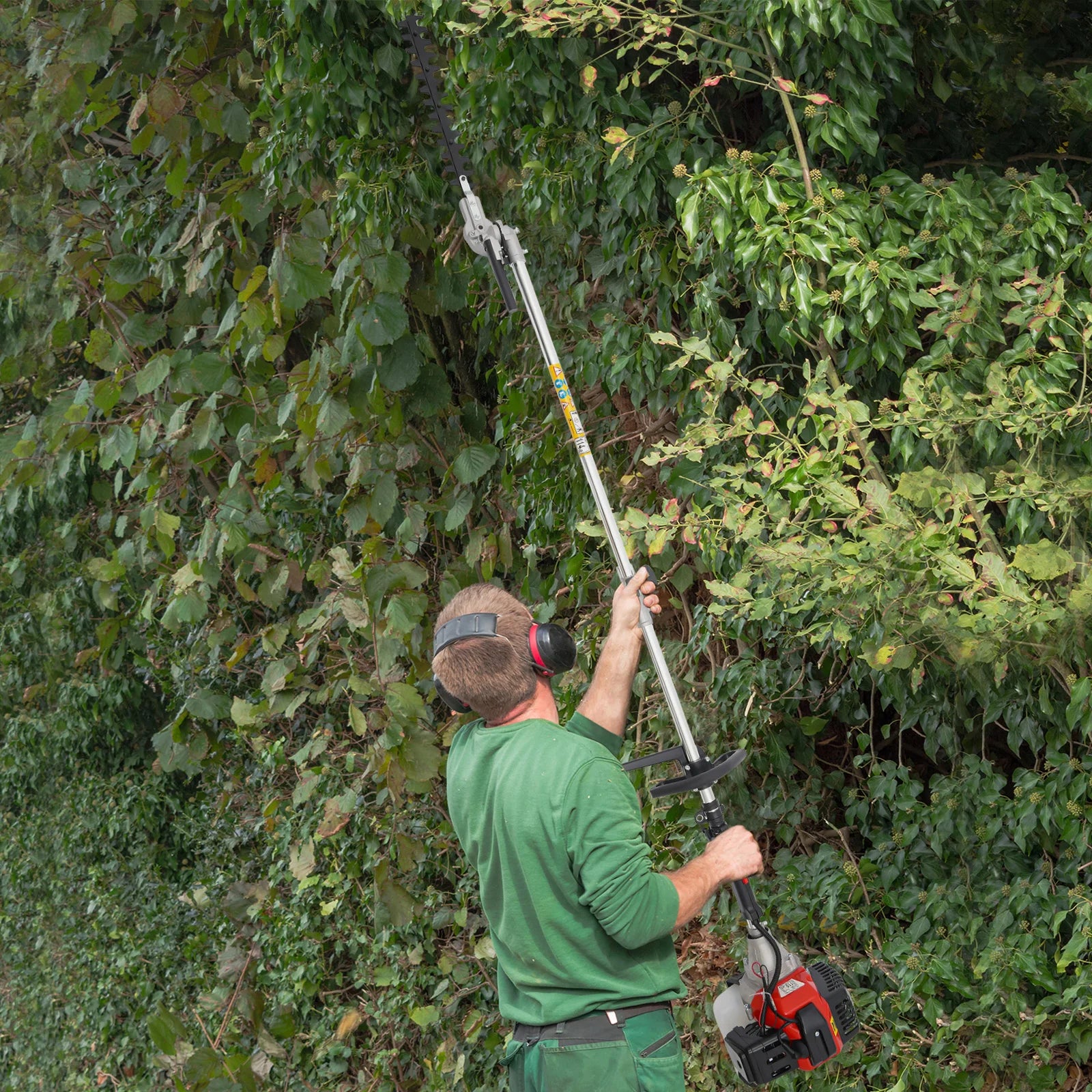

This product is mainly used for shrub harvesting and cleaning, weed harvesting, reed harvesting, landscaping, orchard vineyard cleaning, field pond side weed removal, etc. It is mostly used in agriculture, forestry, urban greening, landscaping and municipal landscaping weeding, highway green belt weeding maintenance.

How to Use

1. Please must use mixed fuel, the ratio of oil to gasoline 1:25. (can be adjusted according to the fuel grade)

2. Add mixed fuel to the fuel tank, do not add too full to prevent overflow. Press the carburetor oil bubble to pump fuel until the oil bubble is full and the return pipe returns fuel

3. Close the damper upward, and make sure the flame failure switch is in the open state. (Hot engine start does not need to close the damper)

4. Pull the starter to start and then open the damper to gently accelerate the warm-up. (in winter when the weather is colder, you need to close the damper state warm-up, open the damper after warm-up)

Specification

Color: Red

Material: Aluminum Alloy, PP, Manganese Steel

Irrigation Cutter Model: MT520

Engine Mode: 1E44F-5

Carrying Type: Side-Attached

Power Source: Gas Powered

Engine Power: 1.7kw, 6500-8500r/Min

Engine Type: Air-cooled, 2-stroke, Single-cylinder Gasoline Engine

Engine Displacement: 52cc

Carburetor Type: Pump Membrane Type

Idling Speed: 2800-3200r/Min

Fuel Tank Capacity: 1000ml/0.9Qt

Gasoline / Circulating Oil Mixture Ratio: 25:1

Noise: 110dB

Blade Diameter: 25cm/9.8in

Hedge Cutting Length: 45cm/17.7in

Long Rod Saw Length: 30cm/11.8in

Net Weight: 15kg/ 33lbs

Product Size: 105*25*25cm/41*9.8*9.8in

Package Size: 107*28*28cm/42*11*11in

Assembly Required: Yes

Package Included

1*Carrying Strap

1*Long Pole Saw

1*Mower

1*Long Pole Hedge Trimmer

1*Mainframe

1*Grass Stopper

1*Funnel

1*Front Handle

1*Hedge Heating Head

4*Aluminum Haymaking Rope

1*80T Saw Blade

1*3T Saw Blade

1*4T Saw Blade

1*8T Saw Blade

1*40T Alloy Saw Blade

1*2T Diamond-shaped Blade

1*Goggles

1*Guide Plate

1*Chain

1*Guide Plate Sleeve

1* English Instructions

All Accessories for Assembly

Notes

1. Check whether the blade is firmly installed before work and whether there are loose screws, eliminate the potential for failure, clean up the workplace debris stones, and other items, and wear protective equipment.

2. Please check and clean the air filter sponge every 20 hours of work, and check whether the gearbox is lack grease.

3. When the blade fixed gap is greater than 0.03in, please replace a new blade. Insufficient power, unstable idle speed, cold engine start difficulty, please try to replace the spark plug.

4. Please recommend every 50 hours of work for comprehensive maintenance of the whole machine to improve efficiency and service life, use water-diluted detergent to clean the air filter sponge, and dry enough to reinstall.

5. If not in use for a long time, please pour out engine oil and gasoline, and clean the spark plugs during preheating and reinstallation. Please start the engine to burn off the residual fuel in the carburetor, and use the mixed fuel as it is, do not use the mixed fuel for more than 7 days to avoid damaging the engine.

6. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
